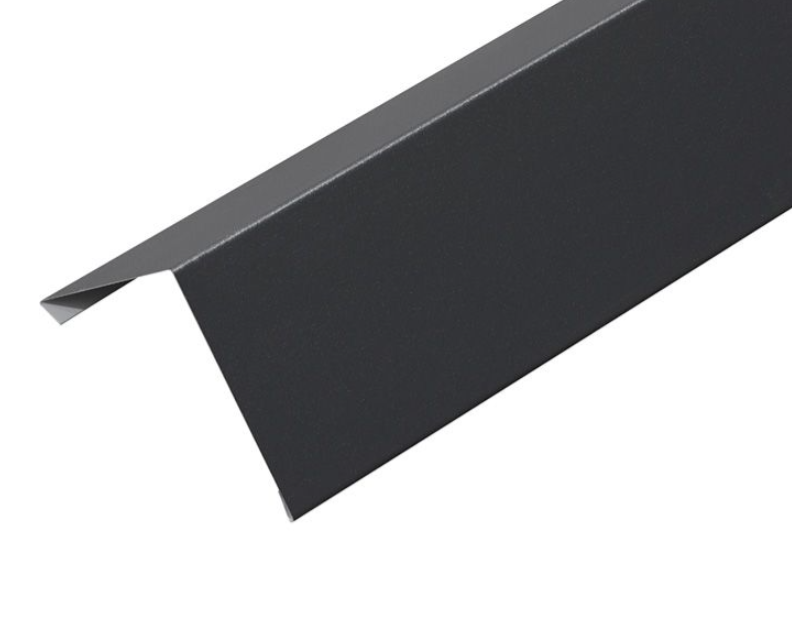

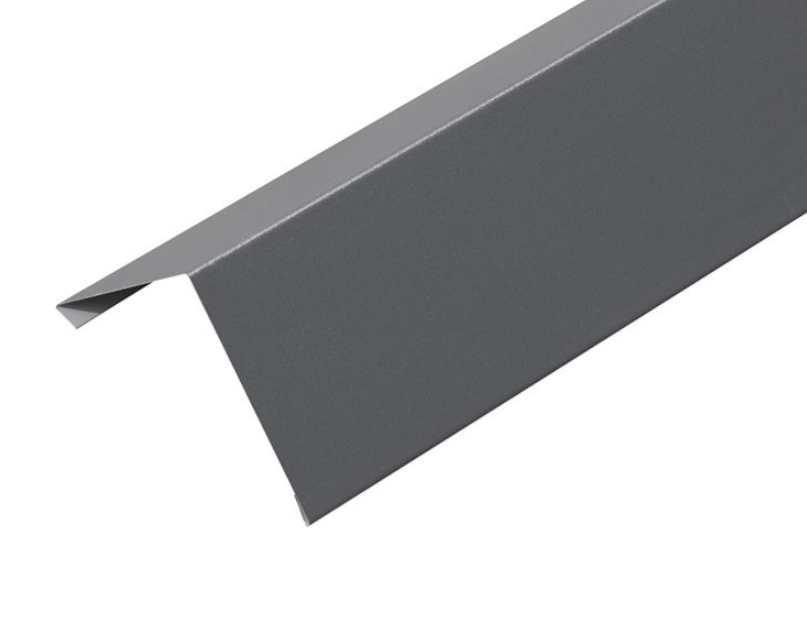

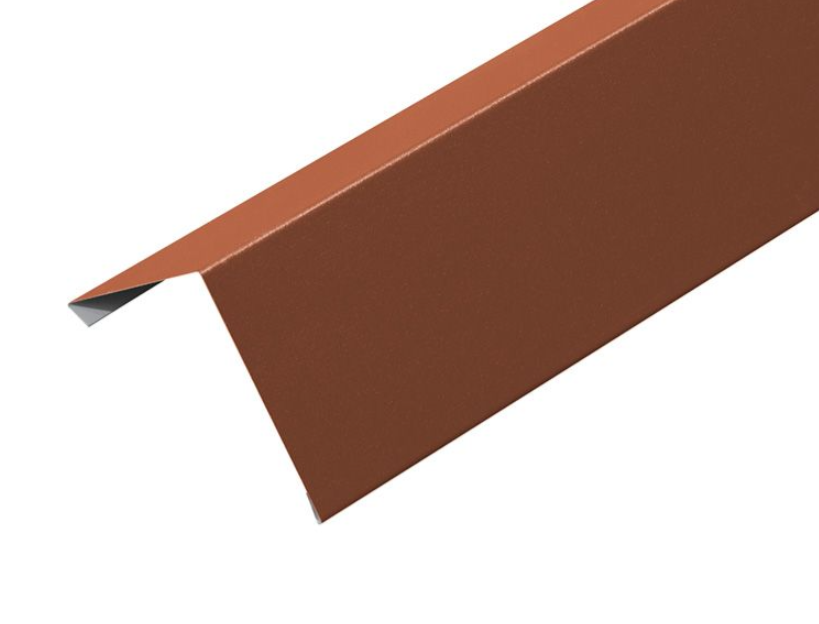

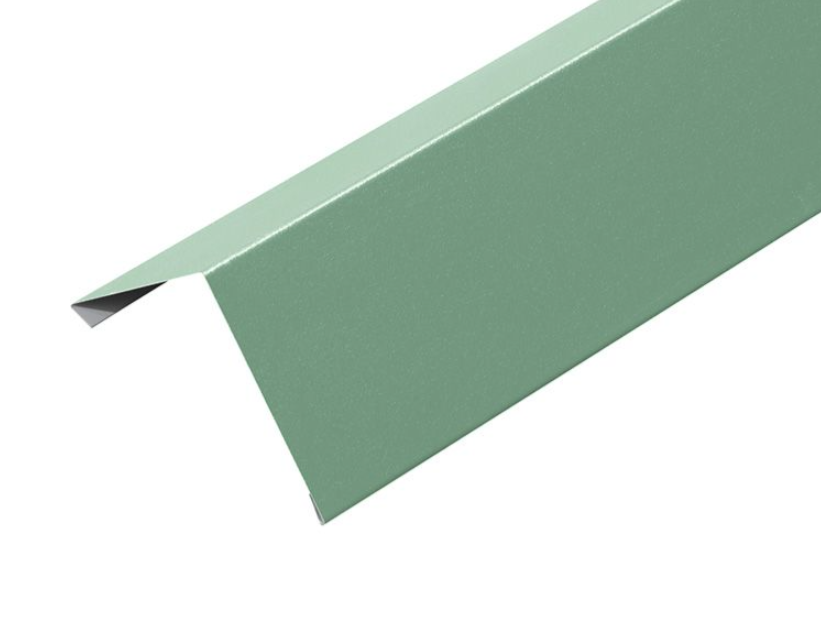

Cladco 90° Corner Barge Flashing for Standing Seam - 3m x 120mm x 120mm

Delivery:

Current Delivery: 7 - 10 days

Key Features:

• Length: 3m
• Dimensions: 120mm x 120mm

• External Finish: GreenCoat® Pural BT
• Internal Finish: Light Grey Polyester
• Material: Pre-Coated Steel
• Gauge thickness: 0.7mm

• Installation: Must be installed by clamping to Z Bar pieces, available separately or as a Barge Flashing Kit
• Fire Rating: A1 fire rated to BS EN 13501

• Use: Provide your cladding structure with sealed external corners

Description:

Cladco 90-degree Corner Barge Flashings for Standing Seam cladding projects measure 120mm x 120mm x 3m. Use these Flashings to finish off the corners of your installation, clamping to Z Bar pieces, available separately or as a Barge Flashing Kit. Made from GreenCoat® Pural BT coated galvanised steel for an exceptional finish.

Cladco Standing Seam Corner Barge Flashings for side cladding are available in 3m lengths to create the perfect finish for your Standing Seam project.

Measuring 120mm x 120mm, Corner Flashings for Standing Seam Cladding will seal the external corners of a building.

Corner Barge Flashings are manufactured using GreenCoat® Pural BT coated steel for excellent colour retention, weather and scratch resistance.

Cladco Standing Seam Flashings are manufactured from SSAB Nordic quality steel, utilising Swedish rapeseed oil within its production. GreenCoat® Pural BT coated steel is an eco-conscious alternative to other materials on the market.

Cladco Corner Barge Flashings have a 90-degree internal angle and are designed to be used alongside Z Bar Flashings. Corner Barge Flashings are installed by simply clamping over Z Bars using seaming pliers.

Downloads & Data Sheets:

 Product Data Sheet

 Product Installation Instructions
