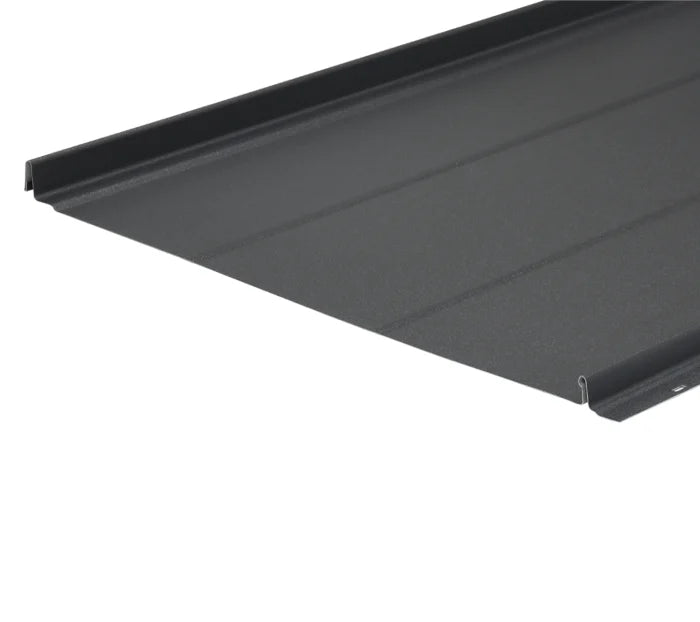

Cladco 30/500 GreenCoat® 0.7 Steel Standing Seam Roof Sheet with Eaves Lip (with Ribs)
Couldn't load pickup availability
Delivery:
Current Delivery: 7 - 10 days
Key Features:
- Eaves Lip: With Eaves Lip (generally used for for roofing, 32mm pre-folded eaves lip securely attaches to Eaves Flashings)
- Ribs: With 2 x 1.5mm Ribs to improve stability and reduce drumming noise
- External Finish: GreenCoat® Pural BT (please select colour from swatches above)
- Internal Finish: Light Grey Polyester
- Material: Pre-Coated Steel
- External Face: 30/500 Standing Seam Sheets (with 2 x 1.5mm ribs)
- Width: 500mm (when lapped)
- Length: Cut to size 1200mm - 8000mm
- Gauge thickness: 0.7mm
- Weight: 5.11kg/m2
- Min Pitch: 6 degrees
- Fire Rating: A1 fire rated to BS EN 13501
- Application: Wall or Roof
Description:
Cladco 30/500 Standing Seam Roofing Sheets with 2 x 1.5mm Ribs are available in 0.7mm thick, GreenCoat® Pural BT coated steel. Ribbed Sheeting is selected for reduced ‘drumming’ noise once installed. Standing Seam Sheets are available with or without an eaves lip for side cladding or roofing.
Crafted from pre-coated steel, Cladco Standing Seam Sheeting offers a durable and long-lasting solution suitable for various applications, including both domestic and commercial projects, for Cladding and Roofing purposes.
Standing Seam Sheets feature a sleek exterior free of visible fixings. The modern design is particularly popular for home conversions and architectural projects.
These Sheets are available with either a 32mm pre-folded eaves lip for secure attachment to Eaves Flashings or with straight-cut ends for Wall Cladding applications. Please note that an eaves lip is not required for Wall Cladding installations. Standing Seam Sheets are fixed in place using Annular Ring Nails, which are hidden under the seams. Using a rubber mallet, link seams together and use an eaves closer tool to clamp eaves lips, where applicable.
Standing Seam Sheets are available with 2 x 1.5mm ribs across each Sheet to improve stability. Ribs help to eliminate oil canning, the distortion of a flat Sheet surface due to variations in the roof structure, as well as ‘drumming’, where high winds can lift Sheeting in exposed areas.
Cladco Standing Seam Sheeting is made from 0.7mm thick SSAB Nordic quality steel, featuring an eco-friendly GreenCoat® Pural BT coating. Our Standing Seam products are BES 6001 certified, rated A+ by the BRE Green Guide, and made from 100% recyclable materials.
- Sustainable GreenCoat® Pural BT coating
- A1 fire-rated (BS EN 13501)
- CE tested to BS EN 14783:2013
- Certified to BES 6001 – responsibly sourced and BRE Green Guide A+ rated
- Made from 100% recyclable material
- Concealed fixings ensure a clean, modern appearance similar to traditional zinc roofs
- Strong water seal at pitches as low as six degrees
- Interlocking seams for quick installation
