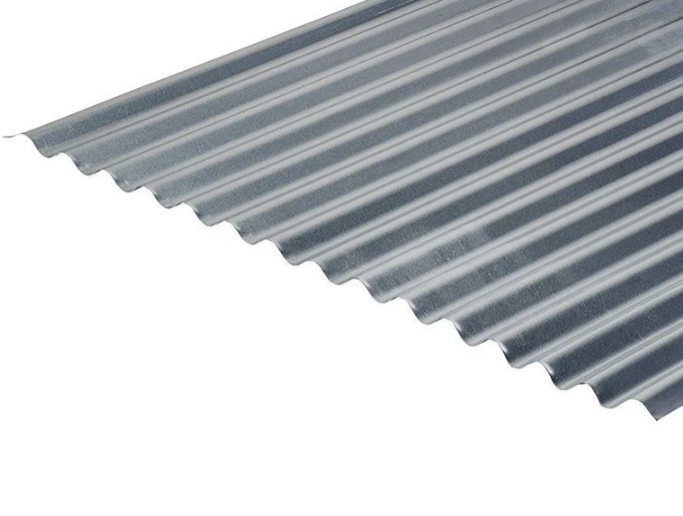

Cladco 13/3 Corrugated Roof Sheet with DRIPSTOP Anti-Condensation 0.5mm Thick Plain Galvanised
Couldn't load pickup availability
Delivery:
Current Delivery: 7 - 10 days
Key Features:
- External Finish: Galvanised
- Internal Finish: Off White DRIPSTOP Anti-condensation fabric
- Sheet Material: High-Quality Galvanised Steel

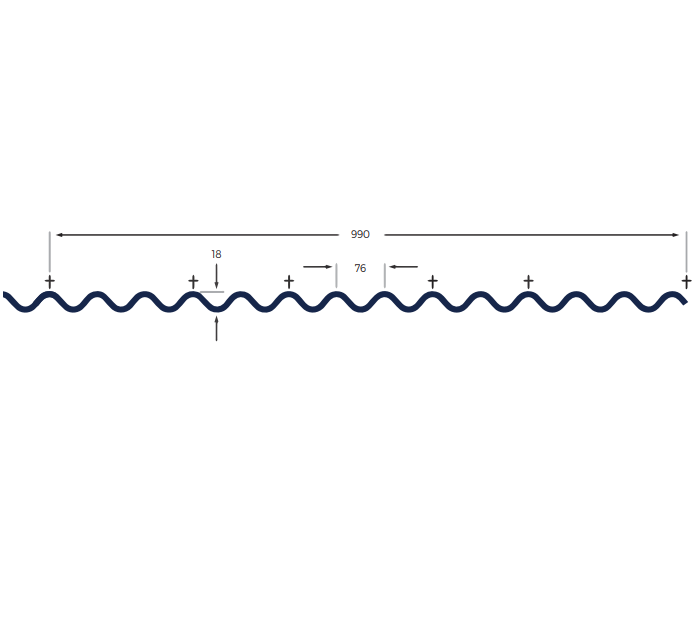

- External Face: Corrugated 13/3 profile (13 profiles of 3 inches when lapped), 18mm profile height, 76mm pitch
- Width: 990mm (when lapped)
- Length: Cut to size 1000mm - 5000mm
- Gauge thickness: 0.5mm
- Weight: 4.9kg/m2
- Application: Wall or Roof
Description:
Dripstop is a proven, economical way of stopping the underside of a metal roof dripping with condensation on uninsulated panels, by trapping and releasing water droplets back into the air. Dripstop membrane turns steel sheeting into anti-condensation roof sheets and is designed to reduce dripping, or running condensate, by creating a vapour barrier on metal roofing panels in buildings with moderate to high levels of humidity.
Do I need Dripstop Anti-condensation?
Dripstop creates a medium for trapping moisture in specially designed pockets formed in the felt membrane. As moisture condenses in high temperature and humidity conditions, Dripstop controls how cyclical condensate forms onto the underside of steel roofing. It does not prevent condensation from forming and, when working correctly, feels damp to the touch.
To help Dripstop work effectively, it is recommended to have a pitched roof of 10 degrees or more. Any lower than this and the shallow angle will cause the water droplets to drip down off the sheet without effectively evaporating back into the environment.
Cladco 13/3 Corrugated Pofile Sheets have been a popular choice in construction for over a century. Ideal for side cladding, 0.5mm Galvanised Sheets feature 13 corrugations of 3 inch (76mm) round, with a width coverage of 3ft 3inch (or 990mm) when lapped. We advise using the 65mm Screws with BAZ Washer to install these Sheets.
Cladco Galvanised 0.5mm Corrugated Roofing Sheets provide a traditional-style, used for domestic and commercial cladding as well as industrial and agricultural structures.
Corrugated Sheets can be used as a single-skin sheeting, or as part of a built-up, insulated system or existing roof. Construction using this particular type of Corrugated Sheet can be safely undertaken down to a 10-degree pitch when used in roof applications.
Simply use with conventional nails or self-drilling screws on top of the profile. To complete your roofing system, Cladco Profiles stocks Rooflights, Fixings, Trims and Flashings for cost-effective corrugated cladding.
The robust, galvanised steel effect of this roofing sheet provides a traditional look which has been a popular choice for decades. A cost-effective option, this lightweight profile is easy to fit and doesn’t require an abundance of specialist tools. Available in a range of finishes, thicknesses and colours, each sheet has been independently tested to ensure it fits with the current CE EN 14782 requirements.
Downloads & Data Sheets:
Product Installation Instructions
Product Video:
