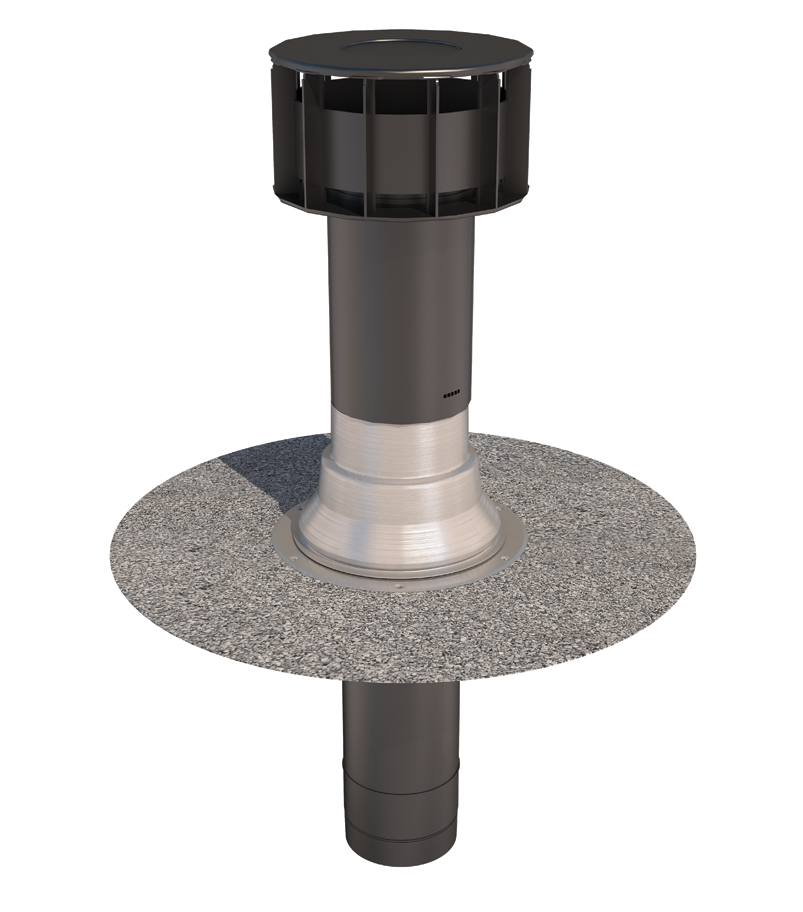

Ubbink OFT-4 Bitumen Flat Roof Vent Terminal - Twin Wall (166mm Diameter)
Couldn't load pickup availability
Delivery:
Current Delivery Time: 2 - 3 Days
Key Features:
- Spigot Diameter: 166mm
- Height above roof: 450mm
- Total gross height: 883mm
- Suitable Pipe: 166mm diameter stack for a 150mm Pipe
- Material: Polyethylene, Aluminium, Bitumen
- Application: For use with Bitumen flat roofs
- Extraction: Suitable for bathroom fans & cooker extractors
- Manufacturers code: 50147042
Description:
The Ubbink OFT-4 has a 166mm diameter stack for a 150mm Pipe.
The pipework above the roof line of the OFT-4 range are twin walled and incorporate an integral condensation drain.
The Ubbink OFT range vents are capped stacks for use in the below roof types and suitable for roof pitches from 0 – 10 degrees.
The OFT/4 range are suitable for use with soil & vent systems and for both mechanical and natural (passive) ventilation installations (available in all materials).
- Large free vent area/Low Pa resistance
- Made of high-quality PP
- Applicable for all weather conditions
- High ventilation capacity
- No rain ingress
- Elegant design
- For new build and renovation purposes
Downloads & Data Sheets:
