RCM Y-Wall A1 Fire Rated Fibre Cement Building Board - 2400mm x 1200mm x 12mm
Couldn't load pickup availability
Delivery:
Current Delivery: 2 - 3 days
Free Delivery on orders over £750.00
Key Features:
- Thickness: 12mm
- Board Size: 2400mm x 1200mm
- Colour: Natural Grey
- Fire Rated: EN 13501-1 class A1
- Uses: A1 Fire rated sheathing board for Ceilings, Partition walling & OEM applications for improved strength and density
- Construction Types: Lightweight Steel Frame, Timber Frame, Modula Offsite
Description:

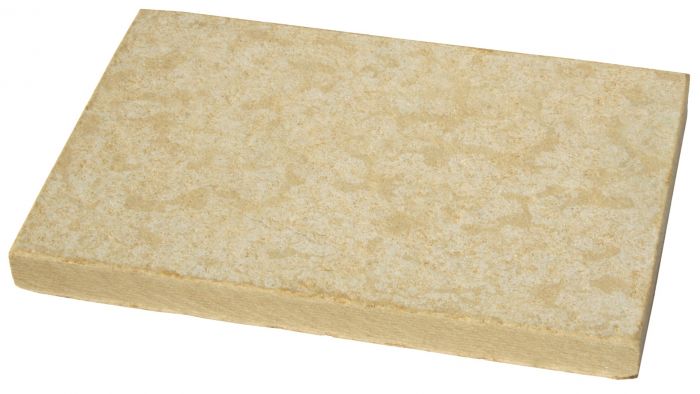

RCM Y-wall is a high-quality flexible calcium silicate based fibre cement building board, perfect for use as a fire rated sheathing board. Offering excellent fire properties as well as high levels of dimensional stability, Y-wall is an exceptional board for use in multiple applications.

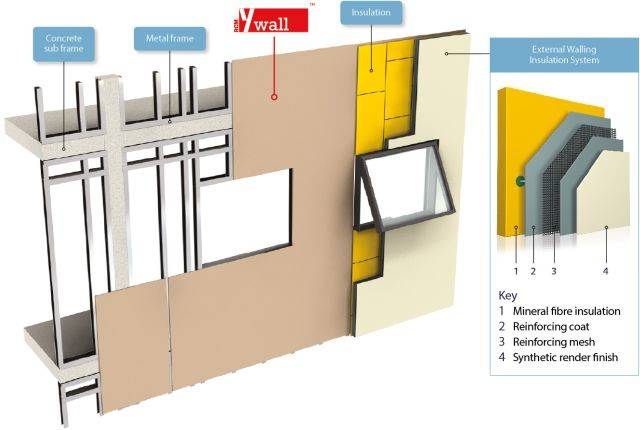

Y-wall is used primarily as a fire rated sheathing board or building board. Used extensively on both steel frame and timber frame structures, Y-wall is used behind all types of facade solutions, as well in ceilings offering a non-combustible classification.
Y-wall is ideal for modular construction methods.
Technical Data:
- Nominal Density: 1200 kg/m3
- Bending Strength (Modulus of Rupture): 12 N/mm2
- Modulus of Elasticity (MoE): 4000 N/mm2
- Thermal Conductivity: 0.30 W/mk
- Moisture Content: 9% ±3%
- Reaction to Fire: BS EN 13501-1 Class A1 Non-Combustible
- Biological Resistance: Highly Resistant
- Surface Condition: Front Face - Smooth & Back Face - Smooth
Downloads & Data Sheets:
Y-Wall Fixing Details
