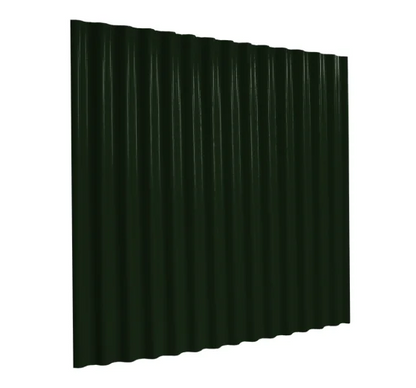

Cladco 13/3 Corrugated 0.5mm Thick Polyester Paint Coated Roof Sheet - Juniper Green
Couldn't load pickup availability
Delivery:
Current Delivery: 7 - 10 days
Key Features:
- Colour: Juniper Green
- External Finish: Polyester Paint Finish
- Internal Finish: Light Grey Polyester
- Material: Galvanised Steel
- External Face: Corrugated 13/3 profile (13 profiles of 3 inches when lapped), 18mm profile height, 76mm pitch
- Width: 990mm (when lapped)
- Length: Cut to size 1000mm - 7000mm
- Gauge thickness: 0.5mm
- Weight: 4.9kg/m2
- Application: Wall or Roof
Description:
Cladco 13/3 Corrugated 0.5 Thick Polyester Paint Coated Roof Sheets give the look of a traditional 13/3 ‘corrugated iron cladding’ profile. They have 13 corrugations of 3 inch/76mm round, with a width coverage of 990mm when installed.
The profile featured gives the look of traditional ‘corrugated iron cladding’ that has been used for over a century for a traditional look. Cladco Corrugated Roofing Sheets are available in a range of colours and 0.5 and 0.7mm thickness, with a polyester paint coat on top of the galvanised steel. Please note, we advise using the 65mm Screw with Baz Washer with these sheets.
Mainly used as roofing and cladding on industrial, domestic, commercial and agricultural buildings, this single skin corrugated sheets can be used to over clad an existing roof, part of an insulated build-up system or purely as a single skin of corrugated cladding. Construction using this type of corrugated sheet can be safely undertaken down to a 10-degree pitch using self-drilling screw fixings on top of the profile.
The traditional look of this steel corrugated sheet, combined with its robustness to give a ‘corrugated iron cladding’ appearance, will give you a finished look to be proud of. The lightweight corrugated sheets are easy to fit, making your installation fast and easy, available in a range of colours, thicknesses and finishes, they are also independently tested to current CE EN 14782 requirements.
Downloads & Data Sheets:
Product Installation Instructions
Product Video:
