VELUX EKW 2021M Pro+ Classic Side-by-side Coupled Flashing for Tiles (100mm gap)
Couldn't load pickup availability
Key Features:
- Combination: Side by side with a 100mm gap
- Suitability: For tiles up to 120mm in profile
- Roof Pitch: 15° - 90° roof pitches
- Insulation collar: BDX Insulation Collar & Underfelt collar included
- Middle gutter: Adjustable Middle Gutter included to allow your chosen gap to range between 100mm to 160mm
Description:

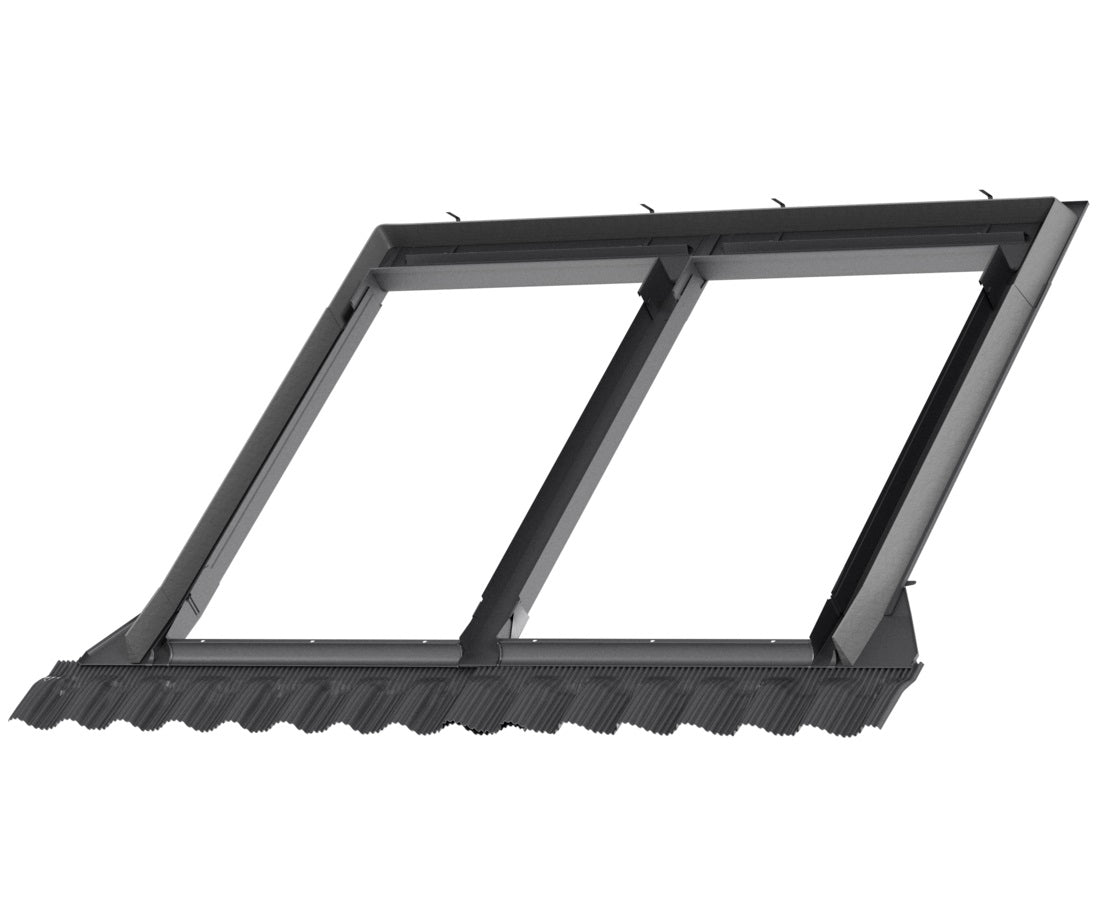

The VELUX New Generation EKW 2021M Pro+ Combination Flashing with a 100mm gap for tiles up to 120mm in profile.

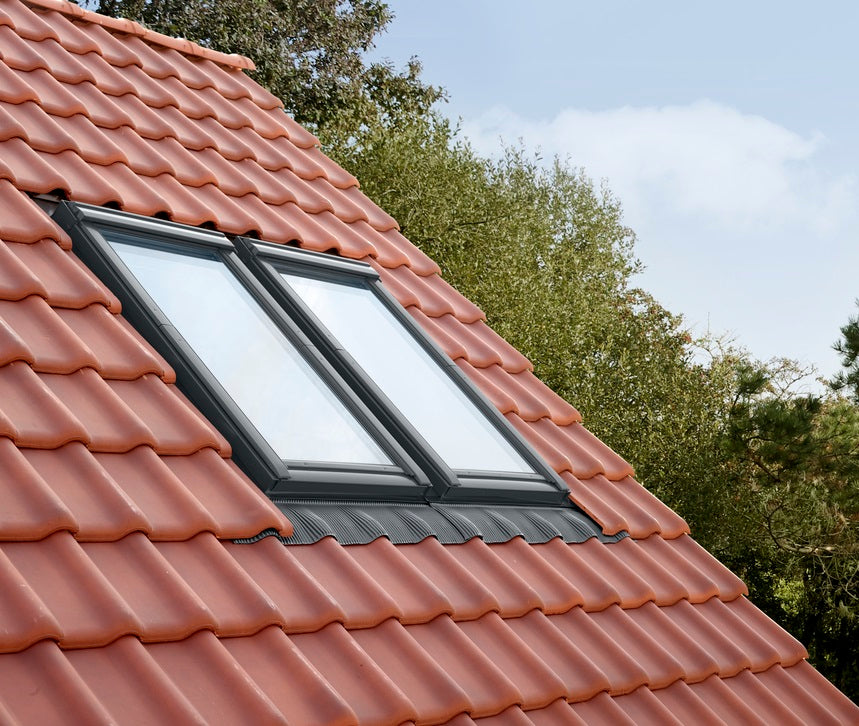

The VELUX Pro+ flashing kit is specifically engineered to ensure flawless installation of two roof windows to be installed side-by-side with a gap of 100mm between both windows, gaining maximum daylight.
This Pro+ flashing kit boasts an adaptable middle gutter, adjustable to widths ranging from 100m to 160mm. This feature guarantees a precise fit to the actual rafter dimensions, offering reassurance in instances where exact measurements are challenging to obtain.
Moreover, the kit is equipped with a user-friendly underfelt collar, complete with an integrated drainage gutter. The underfelt collar establishes a secure seal between the roof window, battens, and roofing underfelt. Meanwhile, the drainage gutter enhances safety by efficiently diverting any water that penetrates the roofing underfelt away from the top of the roof window.
Additionally, the set includes an insulation frame designed to fill the gap between the roof window and the roof construction. This not only minimizes heat loss but also eradicates cold bridges, ensuring optimal thermal insulation.
VELUX flashing kits have been cleverly designed to integrate your VELUX roof window perfectly into your specific roofing material, which ensures that your window is completely weathertight, even in the most severe weather conditions.
Downloads & Data Sheets:
EKW 2021M Flashing Installation Manual
VELUX 10 Year Guarantee Document
Adjustable Middle Gutter:
EKW CK01 2021M Coupled (55 x 70 cm)
- EKW CK01 2021M Coupled (55 x 70 cm)
- EKW CK02 2021M Coupled (55 x 78 cm)
- EKW CK04 2021M Coupled (55 x 98 cm)
- EKW CK06 2021M Coupled (55 x 118 cm)
- EKW FK04 2021M Coupled (66 x 98 cm)
- EKW FK06 2021M Coupled (66 x 118 cm)
- EKW FK08 2021M Coupled (66 x 140 cm)
- EKW MK04 2021M Coupled (78 x 98 cm)
- EKW MK06 2021M Coupled (78 x 118 cm)
- EKW MK08 2021M Coupled (78 x 140 cm)
- EKW MK10 2021M Coupled (78 x 160 cm)
- EKW MK12 2021M Coupled (78 x 180 cm)
- EKW PK25 2021M Coupled (94 x 55 cm)
- EKW PK04 2021M Coupled (94 x 98 cm)
- EKW PK06 2021M Coupled (94 x 118 cm)
- EKW PK08 2021M Coupled (94 x 140 cm)
- EKW PK10 2021M Coupled (94 x 160 cm)
- EKW SK01 2021M Coupled (114 x 70 cm)
- EKW SK06 2021M Coupled (114 x 118 cm)
- EKW SK08 2021M Coupled (114 x 140 cm)
- EKW SK10 2021M Coupled (114 x 160 cm)
- EKW UK04 2021M Coupled (134 x 98 cm)
- EKW UK08 2021M Coupled (134 x 140 cm)
- EKW UK10 2021M Coupled (134 x 160 cm)
