VELUX EKL 2021M Pro+ Classic Side-by-side Coupled Flashing for Slate (100mm gap)
Couldn't load pickup availability
Key Features:
- Combination: Side by side with a 100mm gap
- Suitability: For Slate up to 8mm thick
- Roof Pitch: 15° - 90° roof pitches
- Insulation collar: BDX Insulation Collar & Underfelt collar included
- Middle gutter: Adjustable Middle Gutter included to allow your chosen gap to range between 100mm to 160mm
Description:

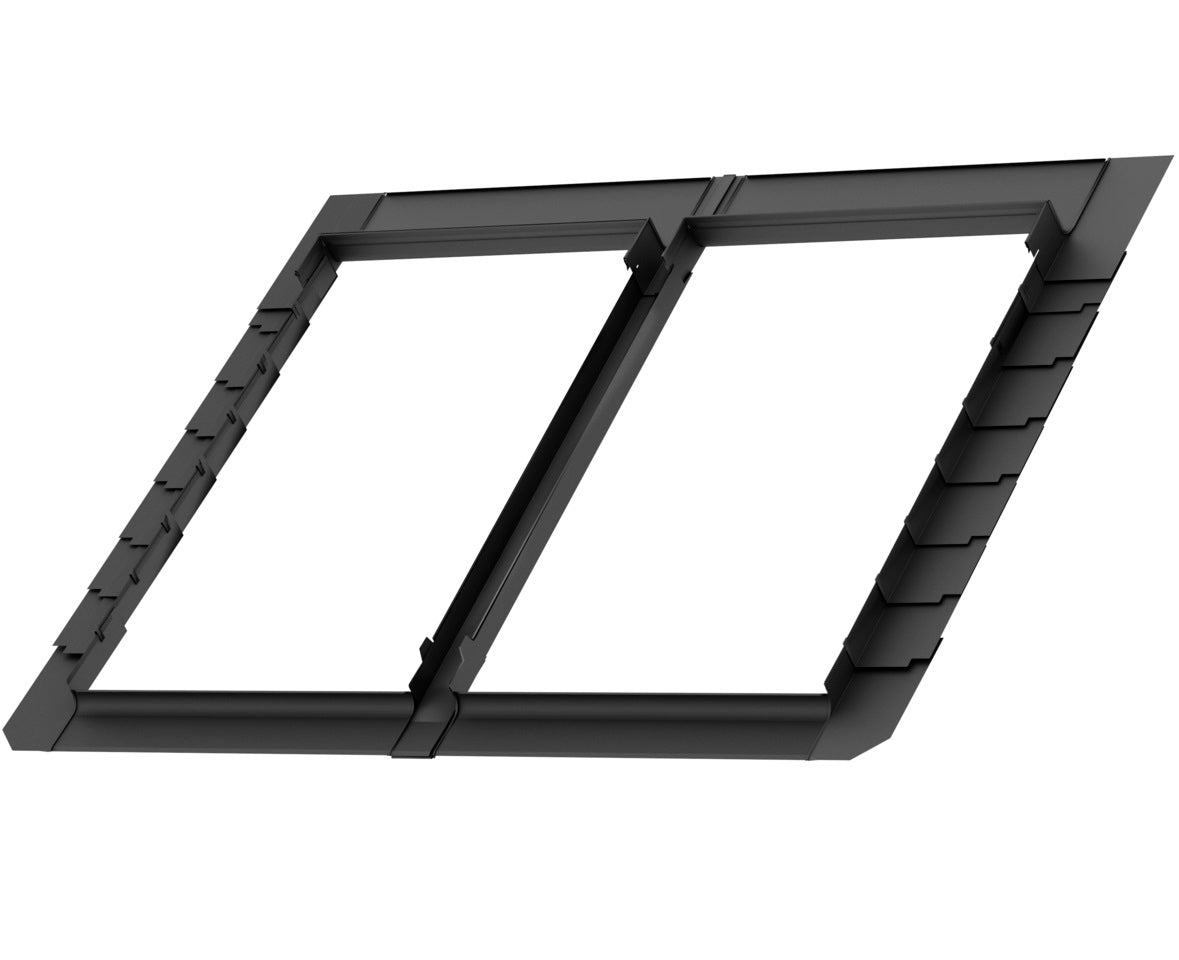

The VELUX New Generation EKL 2021M Pro+ Combination Flashing with a 100mm gap for slate up to 8mm thick.

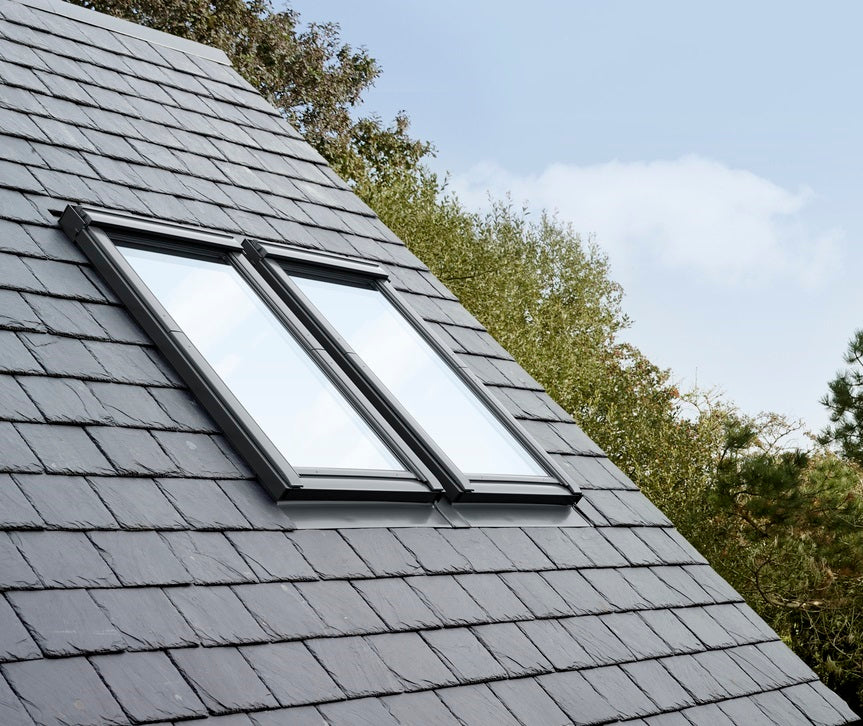

The VELUX Pro+ flashing kit is specifically engineered to ensure flawless installation of two roof windows to be installed side-by-side with a gap of 100mm between both windows, gaining maximum daylight.
This Pro+ flashing kit boasts an adaptable middle gutter, adjustable to widths ranging from 100m to 160mm. This feature guarantees a precise fit to the actual rafter dimensions, offering reassurance in instances where exact measurements are challenging to obtain.
Moreover, the kit is equipped with a user-friendly underfelt collar, complete with an integrated drainage gutter. The underfelt collar establishes a secure seal between the roof window, battens, and roofing underfelt. Meanwhile, the drainage gutter enhances safety by efficiently diverting any water that penetrates the roofing underfelt away from the top of the roof window.
Additionally, the set includes an insulation frame designed to fill the gap between the roof window and the roof construction. This not only minimizes heat loss but also eradicates cold bridges, ensuring optimal thermal insulation.
VELUX flashing kits have been cleverly designed to integrate your VELUX roof window perfectly into your specific roofing material, which ensures that your window is completely weathertight, even in the most severe weather conditions.
Downloads & Data Sheets:
EKL 0021E Flashing Installation Manual
VELUX 10 Year Guarantee Document
Adjustable Middle Gutter:
EKL CK01 2021M Coupled (55 x 70 cm)
- EKL CK01 2021M Coupled (55 x 70 cm)
- EKL CK02 2021M Coupled (55 x 78 cm)
- EKL CK04 2021M Coupled (55 x 98 cm)
- EKL CK06 2021M Coupled (55 x 118 cm)
- EKL FK04 2021M Coupled (66 x 98 cm)
- EKL FK06 2021M Coupled (66 x 118 cm)
- EKL FK08 2021M Coupled (66 x 140 cm)
- EKL MK04 2021M Coupled (78 x 98 cm)
- EKL MK06 2021M Coupled (78 x 118 cm)
- EKL MK08 2021M Coupled (78 x 140 cm)
- EKL MK10 2021M Coupled (78 x 160 cm)
- EKL MK12 2021M Coupled (78 x 180 cm)
- EKL PK25 2021M Coupled (94 x 55 cm)
- EKL PK04 2021M Coupled (94 x 98 cm)
- EKL PK06 2021M Coupled (94 x 118 cm)
- EKL PK08 2021M Coupled (94 x 140 cm)
- EKL PK10 2021M Coupled (94 x 160 cm)
- EKL SK01 2021M Coupled (114 x 70 cm)
- EKL SK06 2021M Coupled (114 x 118 cm)
- EKL SK08 2021M Coupled (114 x 140 cm)
- EKL SK10 2021M Coupled (114 x 160 cm)
- EKL UK04 2021M Coupled (134 x 98 cm)
- EKL UK08 2021M Coupled (134 x 140 cm)
- EKL UK10 2021M Coupled (134 x 160 cm)
