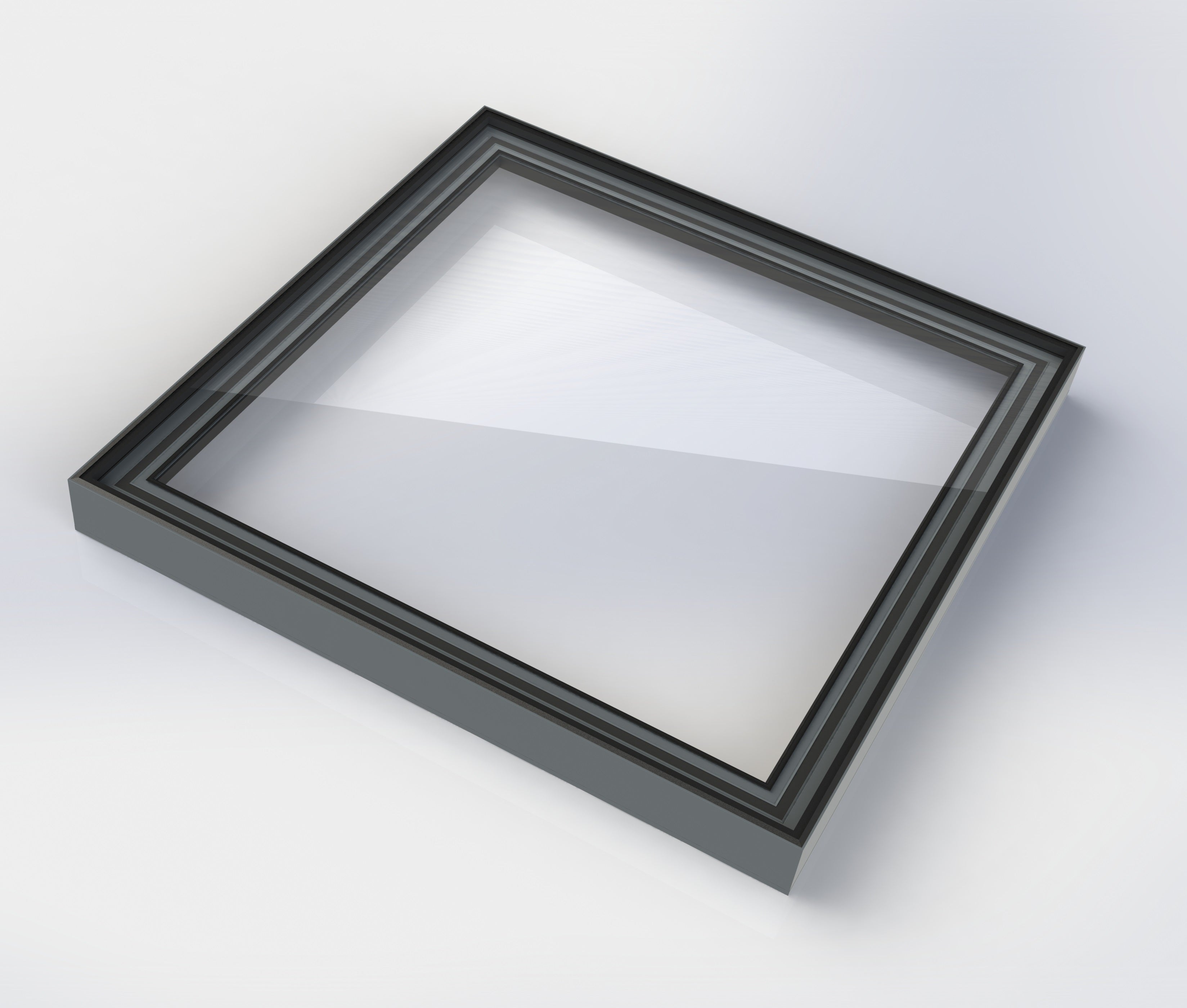

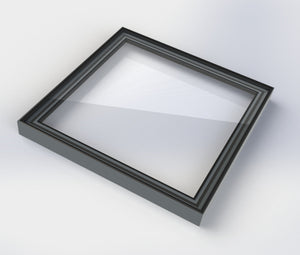

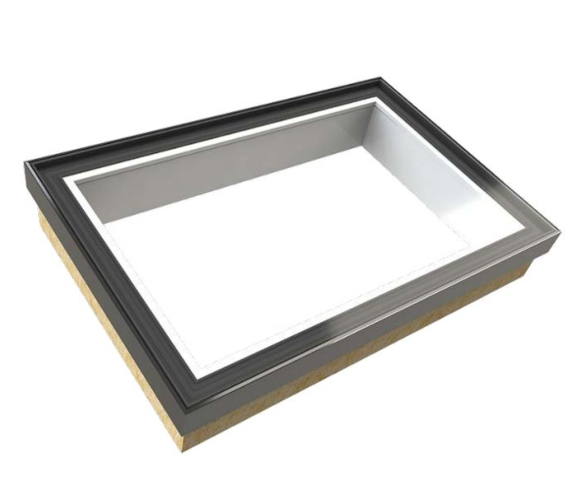

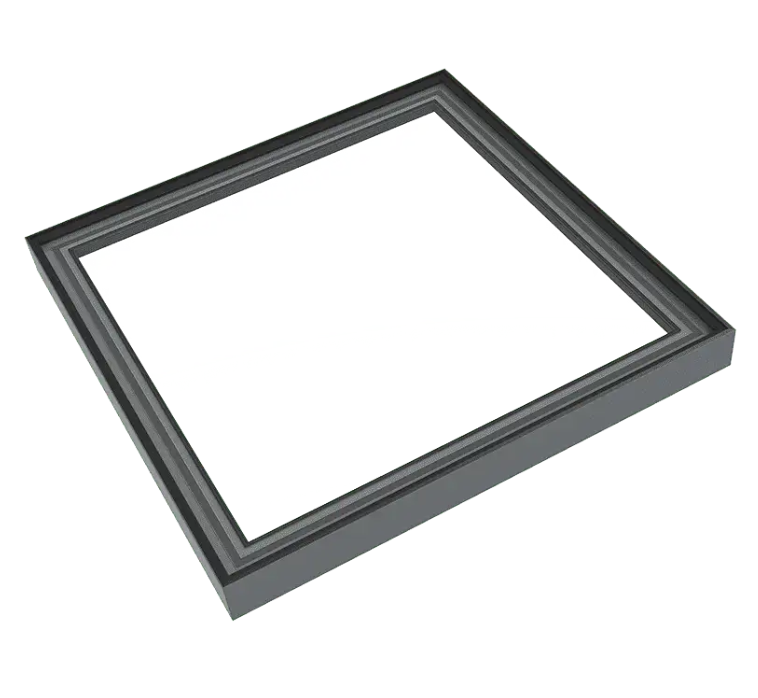

Roofglaze Skyway Fixed Flat Glass Rooflight

Delivery:

Free Nationwide Delivery: 3 - 5 days

Key Features:

• Size: Please select size to match your External Upstand size
• Frame colour: Anthracite Grey
• Frame material: Thermally Broken Aluminium Frame
• Glazing Options: Two High Spec Glazing options
• Roof Pitch: Minimum 3° - 5° Pitch
• Fire Rating: AA fire rated
• Kurb: Kurb not included. Designed to be installed to a site constructed upstand
• Bespoke sizes: Skyway rooflights can be produced to any bespoke size. If you cannot see your site listed, please call for a quotation.
• Standards: Fully compliant with UK Building Regulations & Manufactured to BS 1474, EN 12020-1:2001

Description:

The Skyway Fixed Flat Glass Rooflight is a High Specification Rooflight that comes with a 15 Year Manufacturers Warranty. Delivered direct to your site, fully glazed & assembled, ready for instant installation.

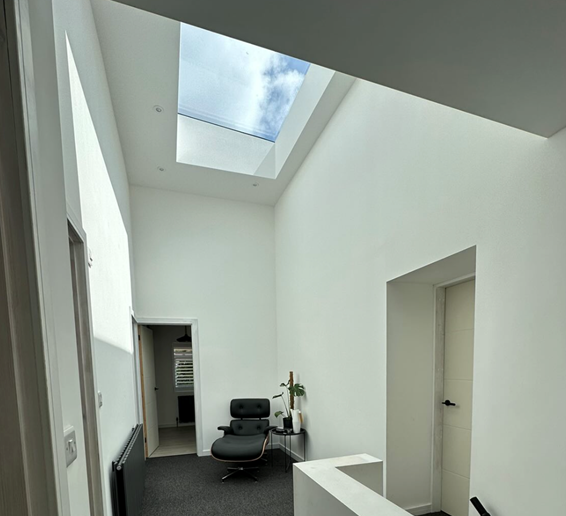

Skway Fixed Flat Glass Rooflights are the perfect solution for anyone looking for an effective and attractive way to bring natural light into their space.

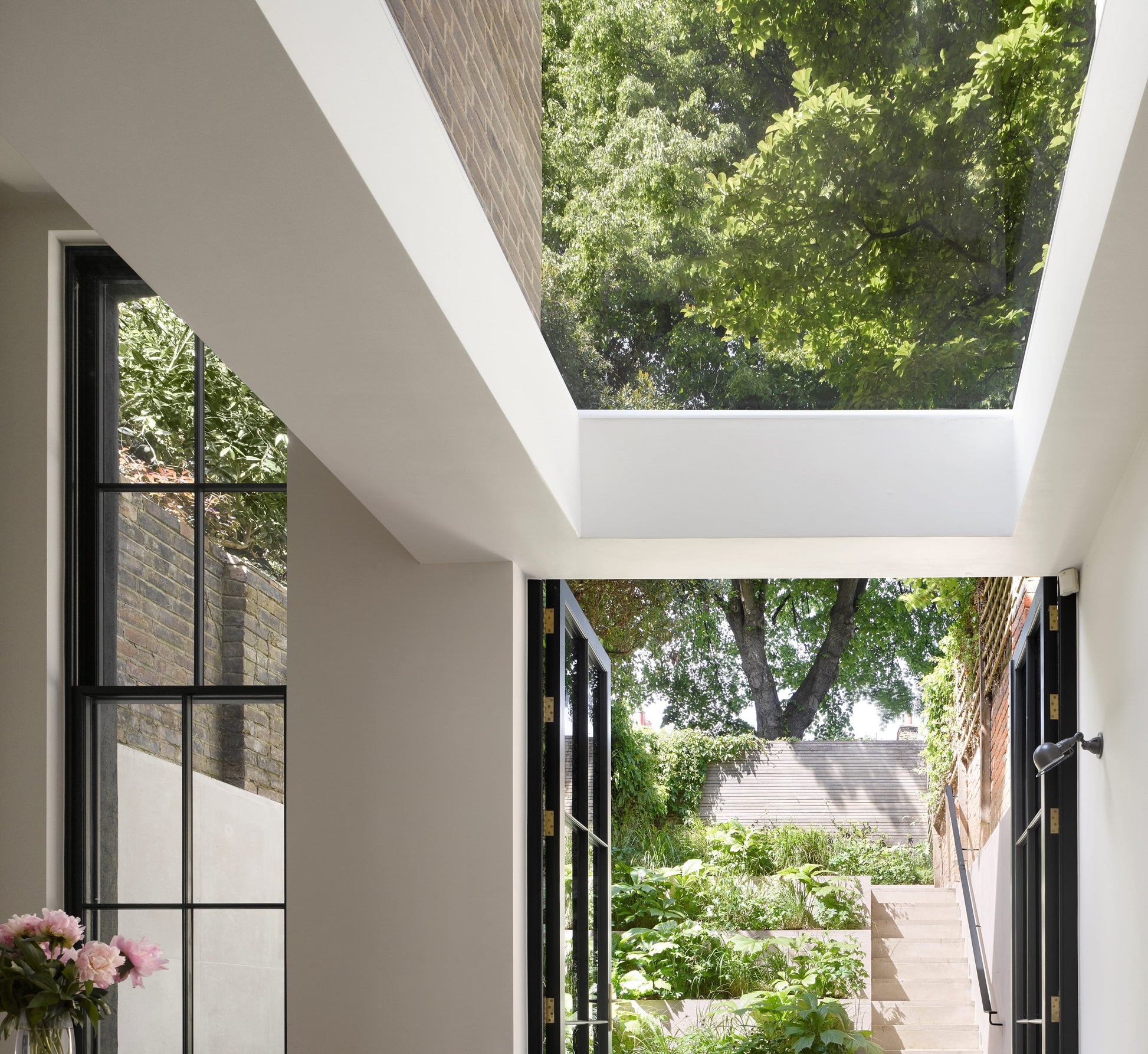

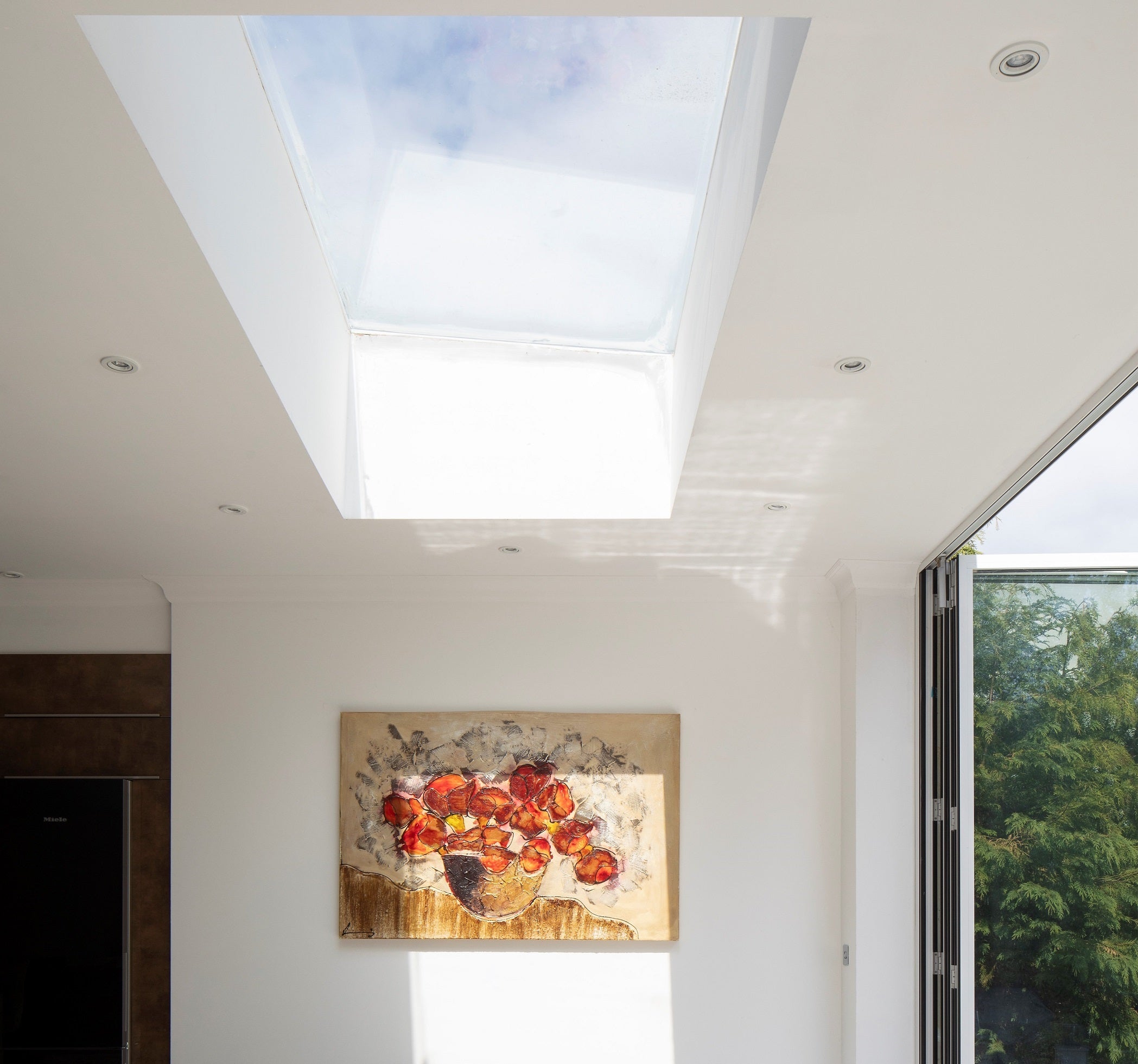

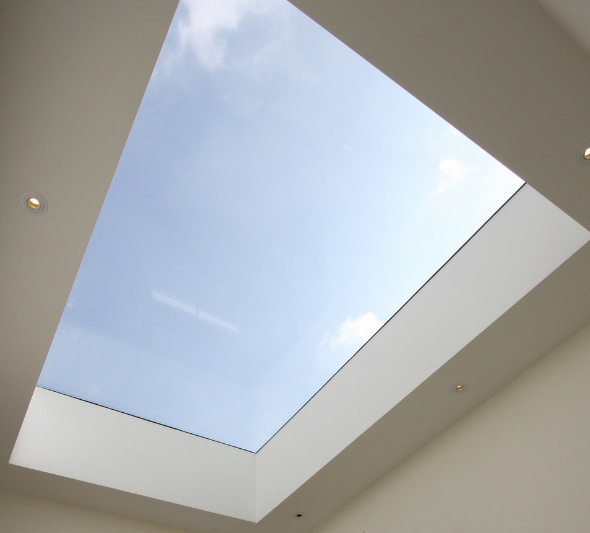

Masterfully designed and expertly crafted to provide outstanding thermal performance, and with no visible internal framework to provide an uninterrupted view to the sky.

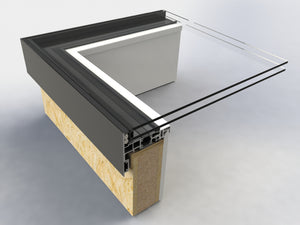

Designed to be installed to a site constructed upstand – minimum recommended thickness, 75mm (plus internal finishes).

Glazing Options:

6mm/6mm Toughened Low E Glass

Outer Pane: 6mm Toughened & Heat Soak Tested Glass.

Cavity: 16mm Black Warm Edge, Argon Gas Filled, Silicone Sealed

Inner Pane: 6mm Toughened & Heat Soak Tested Low E Glass

Centre Pane U Value – 1.1 W/m2k

6mm/8.8mm Toughened & Laminated Low E Glass

Outer Pane: 6mm Toughened & Heat Soak Tested Low E Glass

Cavity: 14mm Black Warm Edge, Argon Gas Filled, Silicone Sealed

Inner Pane: 8.8mm Laminated Glass

Centre Pane U Value – 1.1 W/m2k

Downloads & Data Sheets:

 Technical Drawing & Cross Sections

 Installation Instructions

 Product Data Sheet

 Product Brochure
