Roofglaze Skyway Fixed Flat Glass Rooflight with Insulated Timber Kurb
Couldn't load pickup availability
Delivery:
Free Nationwide Delivery: 3 - 5 days
Key Features:
- Size: Please select size to match your Roof Aperture
- Upstand: Insulated 150mm x 75mm upstand Included
- Pitch: Upstand set to 5 degree pitch
- Frame colour: Anthracite Grey
- Frame material: Thermally Broken Aluminium Frame
- Glazing Options: Two High Spec Glazing options
- Fire Rating: AA fire rated
- Bespoke sizes: Skyway rooflights can be produced to any bespoke size. If you cannot see your site listed, please call for a quotation
- Standards: Fully compliant with UK Building Regulations & Manufactured to BS 1474, EN 12020-1:2001
Description:
The Skyway Fixed Flat Glass Rooflight with Insulated Timber Kurb is a High Specification Rooflight that comes with a 15 Year Manufacturers Warranty. Delivered direct to your site, fully glazed & assembled, ready for instant installation.

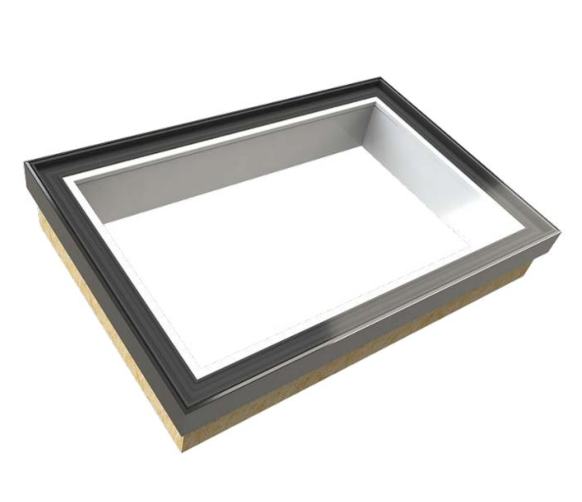

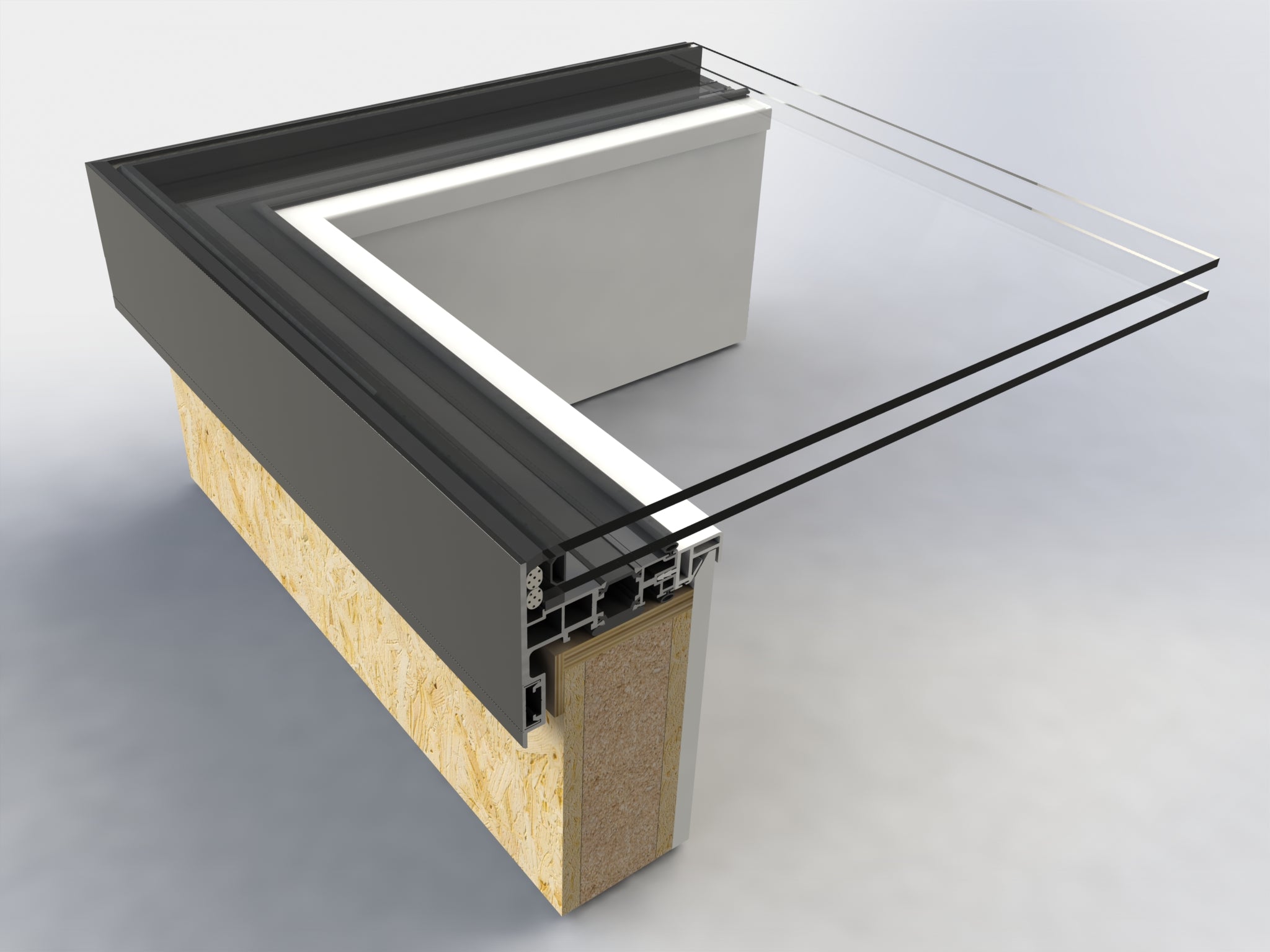

Skway Fixed, preformed insulated timber upstands are 75mm thick, 150mm tall at the lowest point and set to a 5 degree pitch. If you require an upstand that is not set to a 5 degree pitch, for a shallow pitch roof application, please get in touch for a bespoke quotation.
Upstand is supplied flat packed for assembly on site.
Skway Fixed Flat Glass Rooflights with fully Part L compliant pre-formed insulted timber upstands are the perfect solution for anyone looking for an effective and attractive way to bring natural light into their space.
Masterfully designed and expertly crafted to provide outstanding thermal performance, and with no visible internal framework to provide an uninterrupted view to the sky.
Form a structural opening and our rooflight with its pre-formed upstand will do the rest.
Glazing Options:
6mm/6mm Toughened Low E Glass
Outer Pane: 6mm Toughened & Heat Soak Tested Glass.
Cavity: 16mm Black Warm Edge, Argon Gas Filled, Silicone Sealed
Inner Pane: 6mm Toughened & Heat Soak Tested Low E Glass
Centre Pane U Value – 1.1 W/m2k
6mm/8.8mm Toughened & Laminated Low E Glass
Outer Pane: 6mm Toughened & Heat Soak Tested Low E Glass
Cavity: 14mm Black Warm Edge, Argon Gas Filled, Silicone Sealed
Inner Pane: 8.8mm Laminated Glass
Centre Pane U Value – 1.1 W/m2k
Downloads & Data Sheets:
600mm x 600mm / 6mm/6mm Toughened Low E Glass
- 600mm x 600mm / 6mm/6mm Toughened Low E Glass
- 600mm x 600mm / 6mm/8.8mm Toughened & Laminated Low E Glass
- 750mm x 1050mm / 6mm/6mm Toughened Low E Glass
- 750mm x 1050mm / 6mm/8.8mm Toughened & Laminated Low E Glass
- 850mm x 850mm / 6mm/6mm Toughened Low E Glass
- 850mm x 850mm / 6mm/8.8mm Toughened & Laminated Low E Glass
- 850mm x 1350mm / 6mm/6mm Toughened Low E Glass
- 850mm x 1350mm / 6mm/8.8mm Toughened & Laminated Low E Glass
- 850mm x 1650mm / 6mm/6mm Toughened Low E Glass
- 850mm x 1650mm / 6mm/8.8mm Toughened & Laminated Low E Glass
- 850mm x 1850mm / 6mm/6mm Toughened Low E Glass
- 850mm x 1850mm / 6mm/8.8mm Toughened & Laminated Low E Glass
- 850mm x 2350mm / 6mm/6mm Toughened Low E Glass
- 850mm x 2350mm / 6mm/8.8mm Toughened & Laminated Low E Glass
- 850mm x 2850mm / 6mm/6mm Toughened Low E Glass
- 850mm x 2850mm / 6mm/8.8mm Toughened & Laminated Low E Glass
- 1050mm x 1050mm / 6mm/6mm Toughened Low E Glass
- 1050mm x 1050mm / 6mm/8.8mm Toughened & Laminated Low E Glass
- 1050mm x 1850mm / 6mm/6mm Toughened Low E Glass
- 1050mm x 1850mm / 6mm/8.8mm Toughened & Laminated Low E Glass
- 1350mm x 1350mm / 6mm/6mm Toughened Low E Glass
- 1350mm x 1350mm / 6mm/8.8mm Toughened & Laminated Low E Glass
