RYNO Self-Levelling Adjustable Paving Pedestals (RPA Range)
Couldn't load pickup availability
Delivery:
IN STOCK. Next Day Delivery (if ordered before 13:00)
Key Features:
- Material: PP Polyproylene UV resistant
- Base Diameter: 210mm / 220mm
- Head Diameter: 130mm
- Compression: 2100kg
- Spacer Tap Diameter: 2mm / 4mm (standard) / 6mm / 8mm / 10mm
- Fire Rating: BRoof(t4) in accordance with EN 13505:2018 when used as part of the complete TerraSmart Pedestal System
Description:

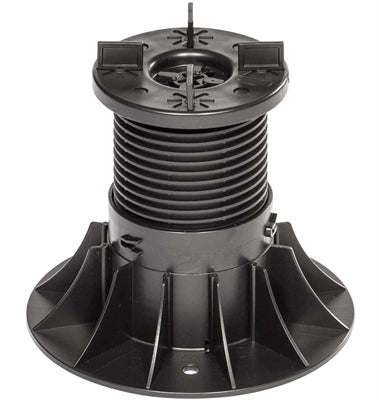

RPA self-levelling adjustable paving pedestals made from super strong and durable PP Polyproylene (recyclable).
RPA RYNO Paving Pedestals feature a ‘Ball and socket’ floating head design allowing slope correction of up to 10.5% (6°). Spacer tabs provide consistent spacing between slabs. The ‘Snap off’ design allows for easy removal.
The adjustable thread allows millimetre perfect adjustment and the base can be cut down to allow for placement against the wall abutment.
The height extension collar raises the total height by 100mm and the holes in the base allow drainage and fixing to substrates
The RPA self-levelling adjustable paving pedestal supports all types of calibrated paving up to an impressive height of 1000mm
Downloads & Data Sheets:
20 - 25mm (RPA-1 ) / 4mm (Standard)
- 20 - 25mm (RPA-1 ) / 4mm (Standard)
- 20 - 25mm (RPA-1 ) / 2mm
- 20 - 25mm (RPA-1 ) / 6mm
- 20 - 25mm (RPA-1 ) / 8mm
- 20 - 25mm (RPA-1 ) / 10mm
- 25 - 30mm (RPA-2 ) / 4mm (Standard)
- 25 - 30mm (RPA-2 ) / 2mm
- 25 - 30mm (RPA-2 ) / 6mm
- 25 - 30mm (RPA-2 ) / 8mm
- 25 - 30mm (RPA-2 ) / 10mm
- 35 - 50mm (RPA-3) / 4mm (Standard)
- 35 - 50mm (RPA-3) / 2mm
- 35 - 50mm (RPA-3) / 6mm
- 35 - 50mm (RPA-3) / 8mm
- 35 - 50mm (RPA-3) / 10mm
- 50 - 80mm (RPA-4) / 4mm (Standard)
- 50 - 80mm (RPA-4) / 2mm
- 50 - 80mm (RPA-4) / 6mm
- 50 - 80mm (RPA-4) / 8mm
- 50 - 80mm (RPA-4) / 10mm
- 80 - 130mm (RPA-5) / 4mm (Standard)
- 80 - 130mm (RPA-5) / 2mm
- 80 - 130mm (RPA-5) / 6mm
- 80 - 130mm (RPA-5) / 8mm
- 80 - 130mm (RPA-5) / 10mm
- 130 - 230mm (RPA-6) / 4mm (Standard)
- 130 - 230mm (RPA-6) / 2mm
- 130 - 230mm (RPA-6) / 6mm
- 130 - 230mm (RPA-6) / 8mm
- 130 - 230mm (RPA-6) / 10mm
- 230 - 330mm (RPA-7) / 4mm (Standard)
- 230 - 330mm (RPA-7) / 2mm
- 230 - 330mm (RPA-7) / 6mm
- 230 - 330mm (RPA-7) / 8mm
- 230 - 330mm (RPA-7) / 10mm
- 330 - 430mm (RPA-8) / 4mm (Standard)
- 330 - 430mm (RPA-8) / 2mm
- 330 - 430mm (RPA-8) / 6mm
- 330 - 430mm (RPA-8) / 8mm
- 330 - 430mm (RPA-8) / 10mm
- 430 - 530mm (RPA-9) / 4mm (Standard)
- 430 - 530mm (RPA-9) / 2mm
- 430 - 530mm (RPA-9) / 6mm
- 430 - 530mm (RPA-9) / 8mm
- 430 - 530mm (RPA-9) / 10mm
- 530 - 630mm (RPA-10) / 4mm (Standard)
- 530 - 630mm (RPA-10) / 2mm
- 530 - 630mm (RPA-10) / 6mm
- 530 - 630mm (RPA-10) / 8mm
- 530 - 630mm (RPA-10) / 10mm
- 630 - 730mm (RPA-11) / 4mm (Standard)
- 630 - 730mm (RPA-11) / 2mm
- 630 - 730mm (RPA-11) / 6mm
- 630 - 730mm (RPA-11) / 8mm
- 630 - 730mm (RPA-11) / 10mm
- 730 - 830mm (RPA-12) / 4mm (Standard)
- 730 - 830mm (RPA-12) / 2mm
- 730 - 830mm (RPA-12) / 6mm
- 730 - 830mm (RPA-12) / 8mm
- 730 - 830mm (RPA-12) / 10mm
- 830 - 930mm (RPA-13) / 4mm (Standard)
- 830 - 930mm (RPA-13) / 2mm
- 830 - 930mm (RPA-13) / 6mm
- 830 - 930mm (RPA-13) / 8mm
- 830 - 930mm (RPA-13) / 10mm
- 930 - 1030mm (RPA-14) / 4mm (Standard)
- 930 - 1030mm (RPA-14) / 2mm
- 930 - 1030mm (RPA-14) / 6mm
- 930 - 1030mm (RPA-14) / 8mm
- 930 - 1030mm (RPA-14) / 10mm
